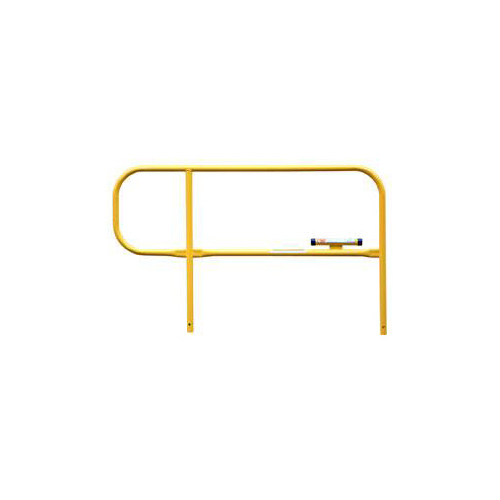

BlueWater 501512 4 Foot Powder Coat Finish Rail Kit consisting of 1 counterweight base, 1 Finish Rail section and 2 locking pins.  The Finish Rail is a portable counterweight non-penetrating guardrail system designed to be used in applications where access ladders are present.  The D ring extension at the end of the rail section keeps the counterweight base away from the landing surface at the top of the ladder.  Prevents the base from becoming a trip hazard at the landing surface.  This kit is made up of one 300014 counterweight base, one 4 foot Finish Rail section and two 100016 locking pins.  The counterweight base has 4 slotted entry ports to provide an infinite range or rail placement.  Rubber pads on underside of base protects roof surface.  The 108 lb base has a lifting point to accommodate use of the EZ Mover dolly.  The locking detent pin secures the 4 foot Finish Rail to the base providing a visual means of verifying that it is locked into place.  The 1-5/8 inch steel tubing top rail measures 42 inches above work surface.  Bright, safety yellow powder coat finish.  Each rail section includes tube with set-up instructions.  Finish Rail has been tested to meet OSHA 29 CFR 1910.23 and 1926.502 requirements for guardrail systems.

• Finish Rail does not require penetrating roof surface.
• Kit consists of counterweight base, 4 foot Finish Rail section and two locking pins.
• Made in USA.
• Designed for use at access ladder landing surfaces.
• Rail extension keeps base away from landing surface eliminating a potential trip hazard.
• Bright, safety yellow powder coat finish.
• Rail section made from 1-5/8 inch steel tubing.
• Base dimensions 21-1/4" X 21-1/4".
• The 4 slotted base entry ports provide infinite range of rail placement.
• Rubber pads on underside of base protects roof surface.
• Base includes lifting point for use with EZ Mover dolly.
• Locking detent pin secures rail section to the base.
• Complies with OSHA 29 CFR 1910.23 and 1926.502.
• Kit weighs 121 lbs.
• CALL FOR FREIGHT ESTIMATE 614/876-8698.
