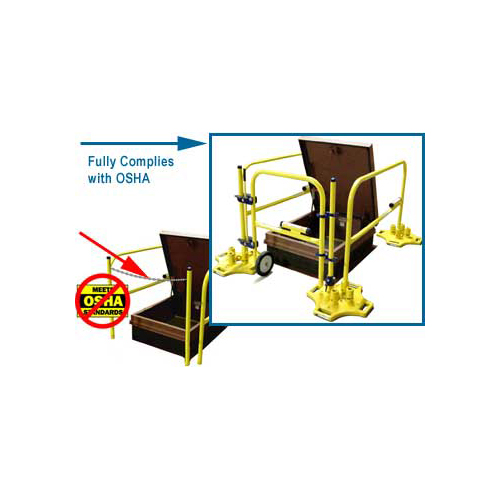

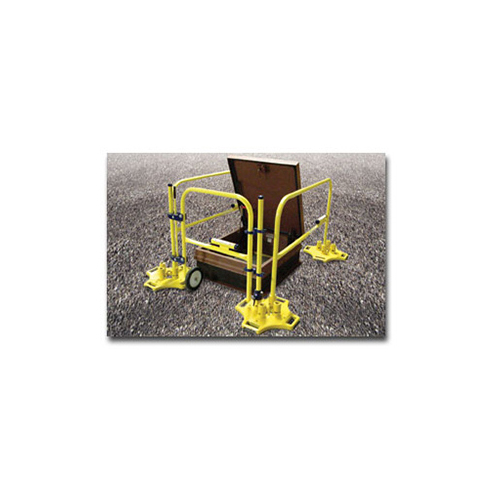

BlueWater 500043 24 X 24" Powder Coat SafetyRail 2000 Roof Hatch Kit consisting of 4 counterweight bases, 1 gate section, 2 rail sections and 6 locking pins.    The SafetyRail 2000 is a portable counterweight non-penetrating guardrail system that does not require use of any tools.  The roof hatch kit is made up of 4 300014 counterweight bases, two 500104 4 foot SafetyRail 2000 sections, one 500091 3 foot gate kit and 6 locking pins.  The counterweight base has four slotted entry ports to provide an infinite range of rail placement.  Rubber pads on underside of base protects roof surface.  The 108 lb base has a lifting point to accommodate use of EZ Mover dolly.  The locking detent pins secure the gate and rail sections to the base providing a visual means of verifying that they are locked into place.  The 1-5/8 inch steel tubing top rail measures 42 inches above roof surface.  Bright, safety yellow powder coat finish.  The non-penetrating roof hatch safety rail system does not require drilling into the roof deck or roof hatch curb.  Sets up in minutes and is easily taken down for roof repair.  The gate systems strong latching mechanism is designed to keep the hinges parallel to the latch post.  The 90 degree welded hinge insures that the gate can only open away from the roof hatch.  The gate section includes a support wheel for ease of movement.  The roof hatch SafetyRail 2000 kit has been tested to meet OSHA 29 CFR 1910.23 and 1926.502 requirements for guardrail systems. "

• SafetyRail 2000 roof hatch kits do not require drilling into the roof deck or roof hatch curb.
• Kit consists of 4 counterweight bases, 3 foot gate section, two 4 foot rail sections and 6 locking pins.
• Made in USA.
• Bright, safety yellow powder coat finish.
• Gate and rail sections made from 1-5/8 inch steel tubing.
• Gate designed to open away from the roof hatch.
• Gate section includes support wheel for ease of movement.
• Latch mechanism designed to keep hinges parallel to latch post.
• The 4 slotted base entry ports provide infinite range of rail placement.
• Rubber pads on underside of base protects roof surface.
• Base includes lifting point for use with EZ Mover dolly.
• Base dimensions 21-1/4" X 21-1/4".
• Locking detent pin secures gate and rail sections to base.
• Complies with OSHA 29 CFR 1910.23 and 1926.502.
• Kit weighs 522 lbs.
• CALL FOR FREIGHT ESTIMATE.
